R23534361 23534775 GT4502V Turbo

Name: GT4502V R23534361 23534775 Turbocharger for Detroit Series 60 14.0L
Brand: UPAPSI
SKU: R23534361

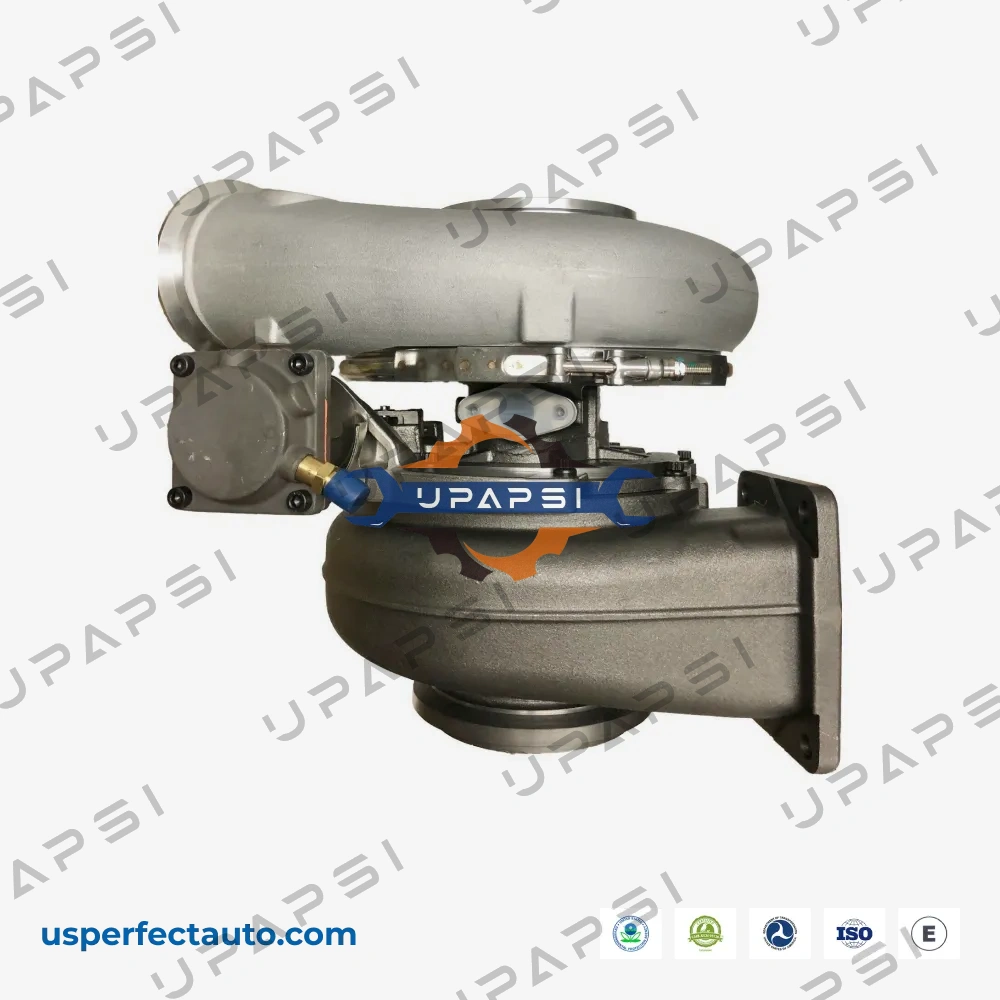

GT4502V R23534361 23534775 Turbocharger for Detroit Series 60 14.0L

The GTA4502V / GT4502V is the Garrett turbocharger for the Detroit Diesel Series 60 14.0L engine used in Freightliner, Kenworth, Peterbilt, International, and MCI bus applications. The Series 60 14L was the big-displacement version of the Series 60 family, rated at higher HP than the 12.7L. This is a VGT turbo with electronic actuator, covering DDEC V platform trucks from 2004-2011. Garrett part 758204-0007, Detroit OEM R23534361/23534775. Our GT4502V ships new with all new components including speed sensor, dynamically balanced, with gaskets. We supply shops, fleets, and distributors.

Turbo Model

GTA4502V / GTA4508V (Garrett, VGT with electronic actuator)

OEM / Interchange Numbers

R23534361
23534775
758204-0007
3534775
730395-0035
730395-5035S
758029-0007
758160-5007S
758160-9007

Application

Detroit Diesel Series 60 14.0L DDEC V; VGT with speed sensor

Service & Support

1-Year Unlimited-Mileage Warranty
US Stock, Fast Dispatch
Bulk Orders Welcome
White-Label Support
Fully Certified

Get a Quick Quote

FAQ

The GTA4502V (R23534361 / 23534775) fits the Detroit Diesel Series 60 14-0L on DDEC V. OE and interchange numbers include R23534361, 23534775, 758204-0007, 3534775, 730395-0035, 730395-5035S, 758029-0007, 758160-5007S, 758160-9007. If your number is not listed, send it with the old part's dataplate photo and we confirm the match before shipping.

No. The K31 and S400 are BorgWarner turbos for the Series 60 12-7L. The GT4502V is a Garrett VGT turbo for the Series 60 14-0L. Completely different turbos for different engine displacements.

Includes the speed sensor. Check your specific application for actuator requirements.

Freightliner, Kenworth, Peterbilt, International, and MCI buses with the Detroit Series 60 14L DDEC V engine, 2004-2011.

Brand new, 100% new components, dynamically balanced. No core charge. One-year unlimited-mileage warranty.

Yes. US stock, volume pricing for shops, fleets, and distributors.

GT4502V for Detroit Series 60 14.0L: The DDEC V VGT Turbo

The Series 60 14L was the last generation of the classic Detroit Series 60 family, offering more displacement and power than the 12.7L. The GT4502V is a Garrett VGT turbo — unlike the Series 60 12.7L which uses BorgWarner K31 and S400 turbos, the 14L uses a Garrett unit with an electronic VGT actuator.

Detroit Series 60 turbo overview

Engine	Turbo	Manufacturer
Series 60 12.7L (360-430 HP)	K31	BorgWarner
Series 60 12.7L (450-475 HP)	S400	BorgWarner
Series 60 14.0L (this page)	GT4502V / GTA4508V	Garrett
DD13 12.8L	B3G	BorgWarner

Common failure modes

VGT vane sticking — the electronic VGT on the 14L is prone to vane sticking from soot, especially on EGR-equipped DDEC V engines.
Actuator failure — the electronic actuator motor or gears fail. VGT position fault codes. Test separately from turbo body.
Bearing wear — shaft play at 300k-500k miles on highway trucks.

Cross Reference Numbers

This turbocharger replaces the following OE and interchange numbers:

R23534361
23534775
758204-0007
3534775
730395-0035
730395-5035S
758029-0007
758160-5007S
758160-9007

Related configuration: HE531VE 3781169 for EPA07.

Installation and Care

Find out why the old turbo failed before installing the new one. Oil starvation or contaminated oil will destroy the replacement the same way.
Change the engine oil and filter. Flush or replace the oil feed line.
Replace the exhaust manifold and oil drain gaskets. Prime the turbo with clean oil before startup.
Connect the speed sensor and verify VGT operation through the DDEC V ECM before loading the engine.
