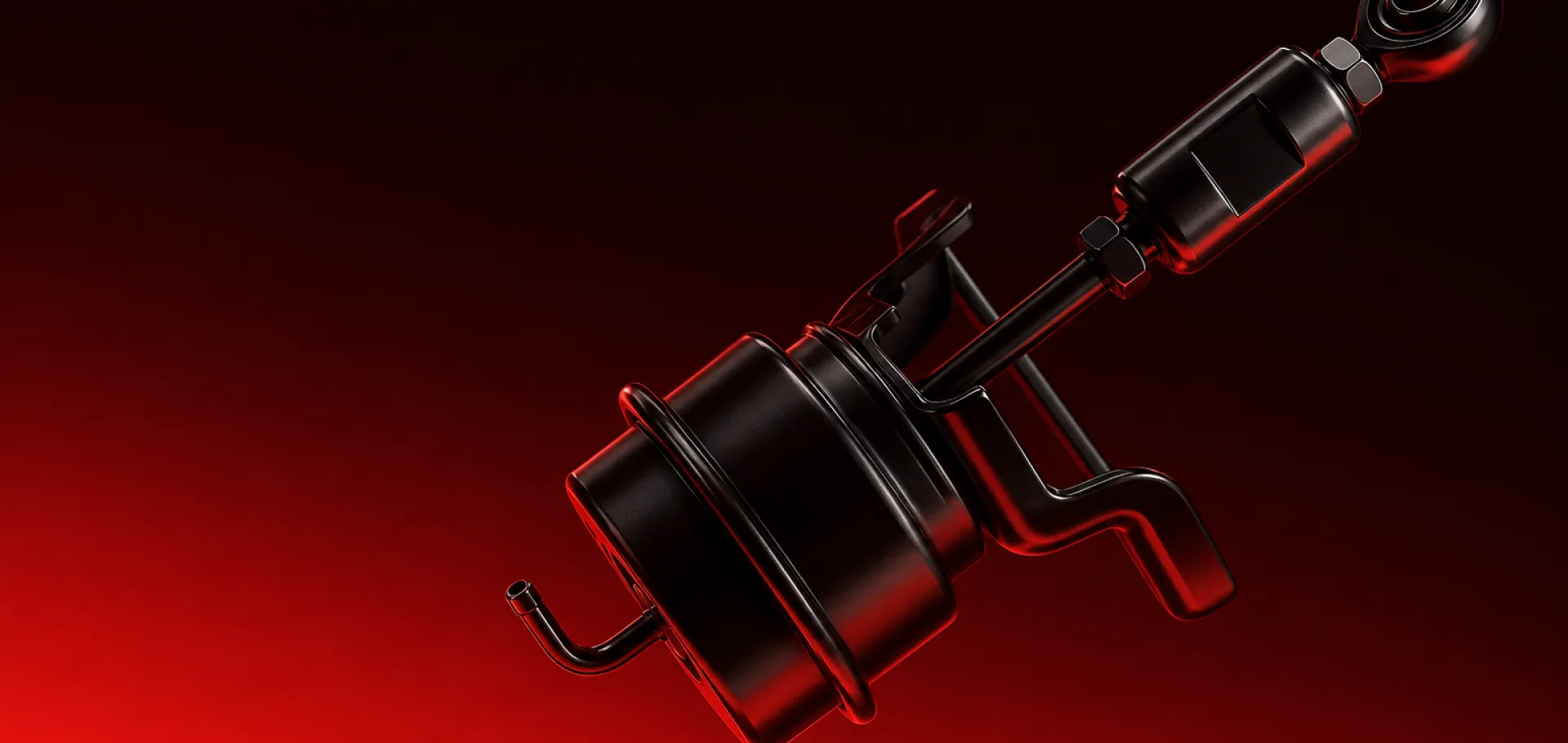

Brand new turbo actuators for Cummins CAT Detroit and Volvo diesel engines supplied by UPAPSI

Turbo Actuators

New Replacement Turbo Actuators for Cummins, CAT, Detroit, Volvo and PACCAR Diesel Engines

The turbo actuator controls boost pressure on every modern diesel engine — wastegate actuators on fixed-geometry turbos and electronic VGT actuators on variable geometry systems like the Holset HE series. When an actuator fails, the result is immediate: overboosting, underboosting, stuck exhaust brakes, or a derate code that parks the truck. We stock brand new replacement turbo actuators for CAT C15 Acert, Detroit DD15 and Series 60, Cummins ISX and ISB platforms, Ford 6.0L Powerstroke, Volvo D13, PACCAR MX-13 and more — covering both mechanical wastegate and electronic VGT types. Every unit is new-built, tested, and matched by part number before it ships. Shops, fleets and distributors order from US stock.

  • 100% Brand New
  • OEM-Spec Quality
  • US Stock, Fast Dispatch
  • Direct-Fit Replacement
  • Exact Part-Number Match
  • 1-Year Warranty
  • No Core Charge
Turbo Actuator for 1998-2013 Caterpillar Cat Truck C15 Acert

Turbo Actuator for 1998-2013 Caterpillar Cat Truck C15 Acert

10R-1887, 10R-2407, 10R1887, 10R2407, 2331589, 2331592, 2331596, 14030539-101, 14030539-102, 14030539-103, 14030539-104, 741154 0006, 741154-0011, 741154-11, 741154-5006, 741154-5011S, 741154-9006, 741154-9011, 741154-9011S, 7411540006, 14030539101, 14030539102, 14030539103, 14030539104, 251-4818, 251-4819, 251-4820, 233-1589, 233-1592, 7411549006, 7411549011, 7411549011S, 847-1442, 14030539-105, 233-1596, 14030539105, 2514818, 2514819, 2514820, 8471442, 7411540011, 74115411, 7411545006, 7411545011S

Actuator For Turbo Detroit S60 14.0L GT4502V R23534361

Actuator For Turbo Detroit S60 14.0L GT4502V R23534361

GTA4502V 757979-0002 Detroit 60 Series 14 L Turbo charger Wastegate Actuator EGR, Fits, 758204-9007 752389-0007 752389-5007S 758204-0007 758204-5007S, 752389-9007 758160-0007 758160-5007S 758160-9007 730395-0035, 730395-5035S 730395-9035 758029-0007 758029-5007S 758029-9007, 23534361 23534360 23534775 R23534361 R23534775, If you are not sure about which item you need, please leave us , your turbo number(on your turbo's tag). We will check it for you., Ship From California

Turbo Wastegate Actuator For Cummins ISM QSM11 Holset HE531V

Turbo Wastegate Actuator For Cummins ISM QSM11 Holset HE531V

2843881, 2881992, 288199200, 288199200HX, 2881992RX, 2881992NX, 3781166, 4035854, 4035855, 4037260, 4955304RX, 4037261, 4038756, 4038757, 4038983, 2843881, 2843890, 4035854, 4035855, 4037260, 4037261, 4037261, 4038756, 3768262, 376826600HX, 3768266H, 3768262SP, 3768266, 376826600HX, 2843890, 288199200HX, 2881992HX, 376826600HX, 3768266H, 3768266HX, 170-032-0008, 170-032-0459, 1700320008, 1700320459, 1700320008, 1700320459, 1700322479, 1700322479, 1700320459, 1700322479

The Part That Controls Every VGT Function — Diagnose Before You Order

A failed turbo actuator is one of the most misdiagnosed problems in diesel repair. Shops replace entire turbochargers at significant cost when the real failure is a significant cost actuator — and the ones that do diagnose correctly still get stuck with core charges, calibration tool costs, and two-week lead times. Our actuator program fixes all three.

VGT Electronic and Wastegate Types Available

Every actuator we ship is brand new. No core deposit, no old unit to crate and ship back, no waiting on credit. Competitors charge significant cost-refundable core deposits deposits that tie up your cash for weeks — we skip that entirely. The part shows up, you install it, the job closes.

Diagnose the Actuator Before Condemning the Turbo

The most expensive mistake in turbo repair is replacing a significant cost turbo when only the actuator failed. Before you order, check the nozzle ring gear on the turbo — if it moves freely with one finger, the turbo body is fine and a new actuator will fix it. If the gear is stuck or gritty, the turbo needs to come off too. We walk through this with shops daily and will tell you honestly which part you need.

Matched by Turbo Model and Actuator Part Number

We carry mechanical wastegate actuators for fixed-geometry turbos like the CAT C15 S410 series, and electronic VGT actuators for Cummins Holset, Detroit DD15, Ford 6.0L Powerstroke, Volvo D13 and PACCAR MX-13 platforms. One source for both types.

Saves Thousands Compared to a Full Turbo

Electronic VGT actuators require calibration after installation — Cummins uses INSITE, Volvo and Mack use PTT, PACCAR uses DAVIE. We tell you up front what the calibration step looks like on your platform so the job is planned before the truck is in the bay. No surprises at the end of a four-hour install.

Ships New, Pre-Tested

Actuators are a repeat item for busy diesel shops — VGT failures are the single most common turbo-related repair on modern trucks. Our pricing is set for shops and distributors who move this part regularly, not inflated for the walk-in retail buyer. Volume terms on the wholesale page.

Covers Holset, Garrett and BorgWarner Platforms

One-year warranty on every actuator, handled by our US team. If a new actuator fails early, the cause is almost always a stuck nozzle ring overloading the motor — we help you find and fix that root cause so the replacement lasts. Details on the warranty page.

VGT Electronic and Wastegate Types Available

Every actuator we ship is brand new. No core deposit, no old unit to crate and ship back, no waiting on credit. Competitors charge significant cost-refundable core deposits deposits that tie up your cash for weeks — we skip that entirely. The part shows up, you install it, the job closes.

Diagnose the Actuator Before Condemning the Turbo

The most expensive mistake in turbo repair is replacing a significant cost turbo when only the actuator failed. Before you order, check the nozzle ring gear on the turbo — if it moves freely with one finger, the turbo body is fine and a new actuator will fix it. If the gear is stuck or gritty, the turbo needs to come off too. We walk through this with shops daily and will tell you honestly which part you need.

Matched by Turbo Model and Actuator Part Number

We carry mechanical wastegate actuators for fixed-geometry turbos like the CAT C15 S410 series, and electronic VGT actuators for Cummins Holset, Detroit DD15, Ford 6.0L Powerstroke, Volvo D13 and PACCAR MX-13 platforms. One source for both types.

Saves Thousands Compared to a Full Turbo

Electronic VGT actuators require calibration after installation — Cummins uses INSITE, Volvo and Mack use PTT, PACCAR uses DAVIE. We tell you up front what the calibration step looks like on your platform so the job is planned before the truck is in the bay. No surprises at the end of a four-hour install.

Ships New, Pre-Tested

Actuators are a repeat item for busy diesel shops — VGT failures are the single most common turbo-related repair on modern trucks. Our pricing is set for shops and distributors who move this part regularly, not inflated for the walk-in retail buyer. Volume terms on the wholesale page.

Covers Holset, Garrett and BorgWarner Platforms

One-year warranty on every actuator, handled by our US team. If a new actuator fails early, the cause is almost always a stuck nozzle ring overloading the motor — we help you find and fix that root cause so the replacement lasts. Details on the warranty page.

The right actuator, confirmed before it ships

WHY CHOOSE US

The right actuator, confirmed before it ships

We match the actuator to your turbo and engine before dispatch, hold it on a US shelf so lead time is days not weeks, and answer the phone when install questions come up. Shops come back because the process is simple and repeatable — one unit or a standing restock. More about our company and quality process.

FAQ

Check the nozzle ring gear on the turbo body — if it moves freely with one finger, the turbo internals are fine and a new actuator will fix the problem. If the gear is stuck, gritty, or will not move without force, soot has locked the nozzle mechanism and the turbo needs to come off too. Common actuator-only symptoms include slow boost response, a dead exhaust brake, and fault codes like P2262 or SPN 2387 with no mechanical noise from the turbo itself.

Yes. We stock mechanical wastegate actuators for fixed-geometry turbos such as the CAT C15 S410 series, and electronic VGT actuators for Holset-equipped Cummins, Detroit DD15, Ford 6.0L Powerstroke, Volvo D13 and PACCAR MX-13 platforms.

Yes. Every electronic VGT actuator must be calibrated to the turbo body after installation. The tool depends on the platform — Cummins INSITE, Volvo/Mack PTT, PACCAR DAVIE, or a compatible third-party scan tool. The calibration maps the actuator's travel range to the actual nozzle ring position on your specific turbo. Without it, the ECM cannot control boost accurately.

All units are 100% brand new — not remanufactured, not rebuilt. No core charge, no old unit to ship back, no deposit tying up your cash. One-year warranty.

Caterpillar C15 Acert, Detroit DD15 and Series 60, Cummins ISX/ISB 6.7 (HE300VG, HE351VE, HE451VE, HE400VG families), Ford 6.0L Powerstroke, Volvo D13, PACCAR MX-13, and more. Each product page lists the exact turbo models and OEM part numbers covered.

Yes. VGT actuator failure is the single most common turbo-related repair on modern diesel trucks — shops that do this work regularly standardize their sourcing with us. Consistent wholesale pricing, US inventory, same verification on every order. See the wholesale page.

Turbo Actuator Guide: Types, Diagnosis and Replacement

The turbo actuator is a small part with an outsized impact on engine performance. When it works, nobody thinks about it. When it fails, the truck either loses power, overboosts, or parks itself with a derate code. Knowing which type you have, how to test it, and when to replace it versus replacing the whole turbo saves real money on the repair.

Wastegate Actuators vs Electronic VGT Actuators

Fixed-geometry turbos use a mechanical wastegate actuator — a pneumatic or mechanical device that opens a bypass valve to bleed off excess exhaust pressure and limit boost. These are simple, durable, and rarely fail before the turbo itself wears out. When they do fail, symptoms are overboosting or inability to hold target boost. CAT C15 Acert and Detroit Series 60 are common examples.

Variable geometry turbos use an electronic actuator that continuously repositions the nozzle ring or vane assembly inside the turbine housing. The ECM commands position changes hundreds of times per minute to manage boost, EGR flow and the exhaust brake. These actuators work harder, run hotter, and fail more often — they are the single most replaced turbo component on modern diesel trucks.

How to Diagnose a Failed VGT Actuator

The symptoms overlap with turbo failure, which is why misdiagnosis is common. A systematic check prevents a significant cost mistake:

  • Fault codes first — P2262 (boost deviation), P003A (boost control position), SPN 2387 (VGT actuator position error). These point at the actuator or the nozzle mechanism, not the turbo's rotating assembly.
  • The one-finger test — remove the actuator from the turbo and try to rotate the nozzle ring gear by hand. If it moves freely, the turbo is mechanically sound and a new actuator will fix the problem. If it is stuck or gritty, soot has locked the nozzle ring and the turbo needs service or replacement.
  • Actuator electrical check — verify the wiring harness, connector pins and CAN communication. A corroded connector or a short to ground can kill a good actuator or make a new one appear dead on arrival.
  • Exhaust brake test — on trucks where the turbo doubles as the exhaust brake, a weak or dead engine brake is often the earliest sign of VGT trouble, appearing before any boost codes set.

Why VGT Actuators Fail

The root cause is almost always soot. Exhaust soot coats the nozzle ring sliding surfaces, the ring starts to drag, and the actuator motor works progressively harder until its gears strip or its motor burns out. Trucks that idle heavily, run short trips, or have marginal EGR systems fail soonest. Trucks that run loaded at highway speed and use the exhaust brake regularly last longest — the brake cycling keeps the nozzle ring surfaces clean.

Replacing a Turbo Actuator: What Matters

Three steps protect the new actuator. First, confirm the nozzle ring moves freely — installing a new actuator on a stuck nozzle ring will destroy it on the same timeline as the old one. Second, inspect the wiring harness and connector for corrosion or damaged pins before connecting the new unit. Third, complete the calibration through the OEM scan tool (INSITE, PTT, DAVIE) and verify full actuator travel before releasing the truck. The calibration maps the actuator motor range to the physical nozzle ring position on that specific turbo body — it is not optional.
