US Perfect Auto Parts & Supplies Inc.

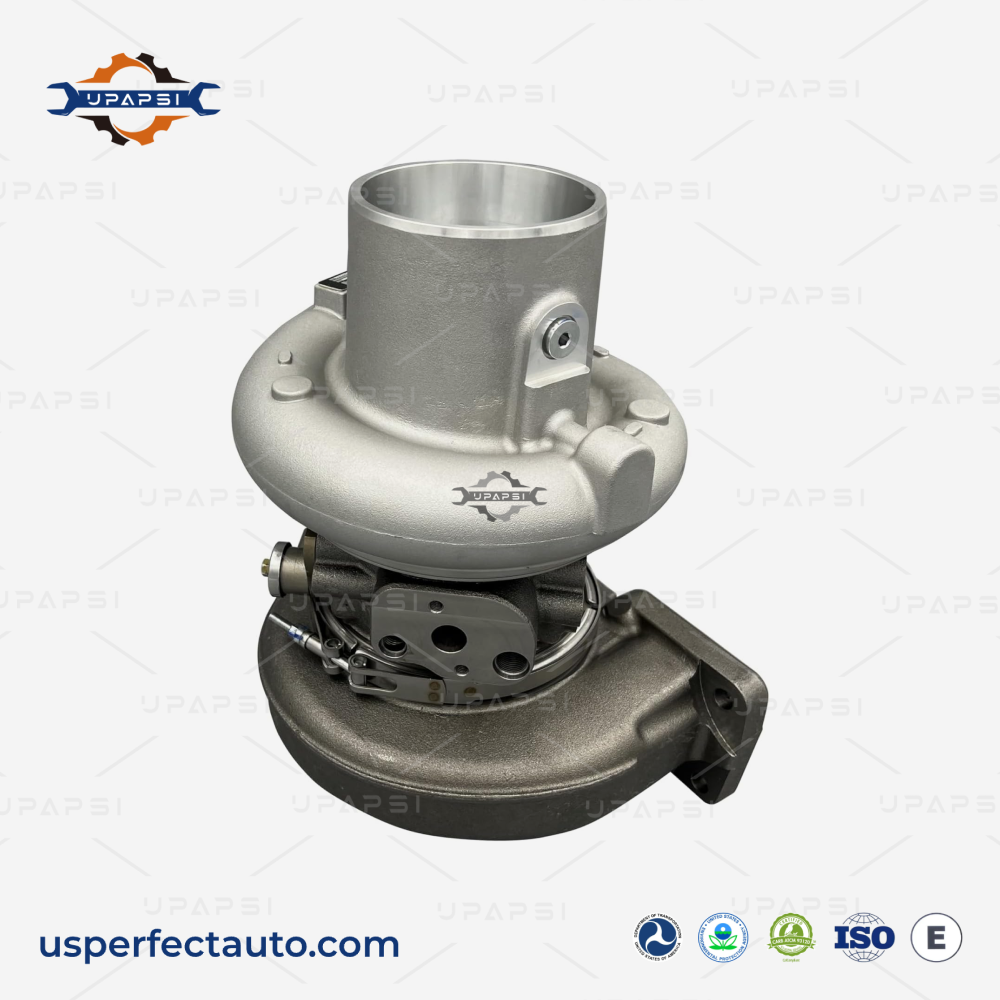

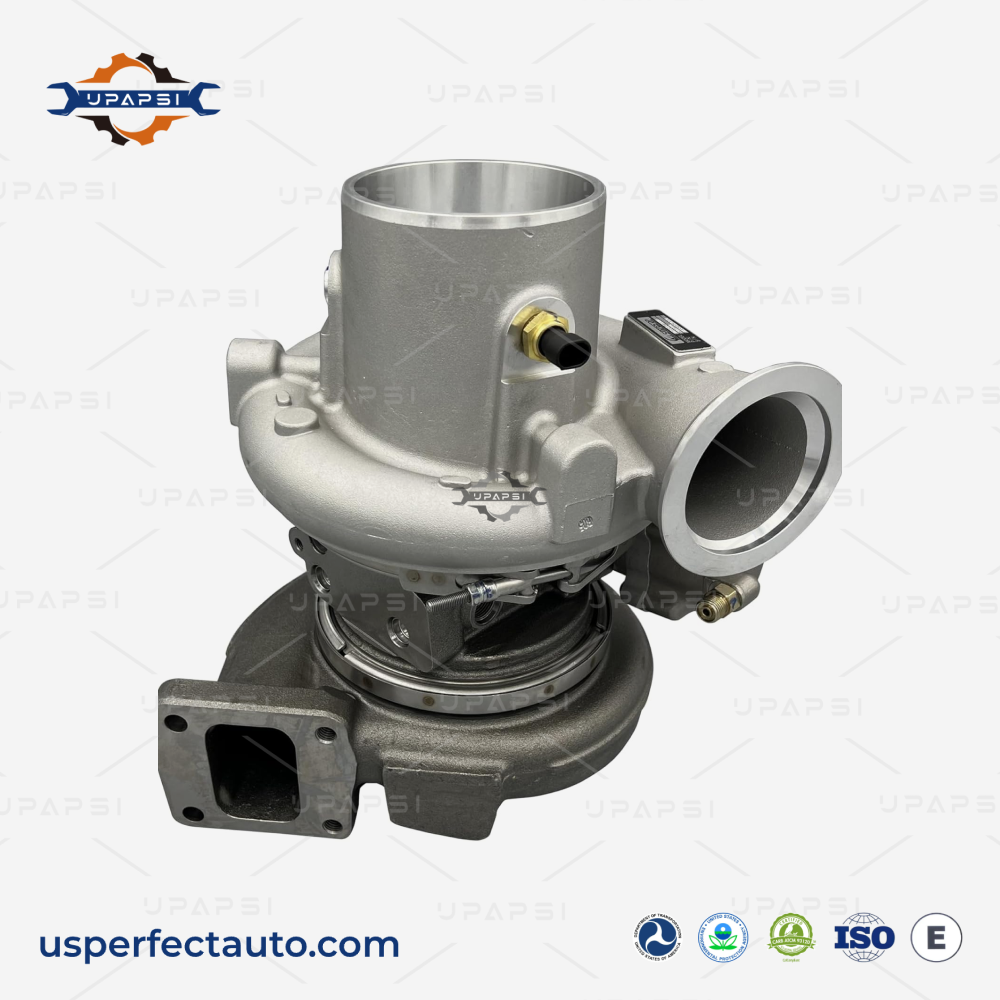

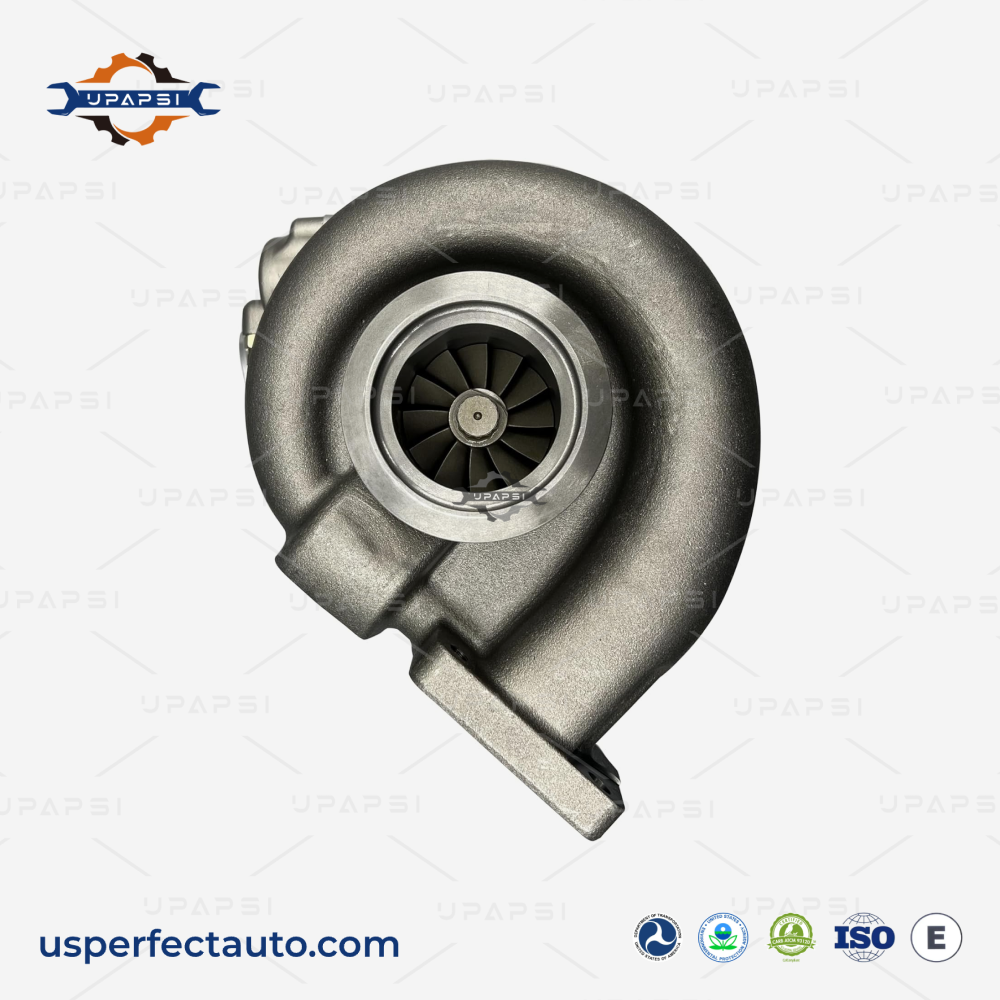

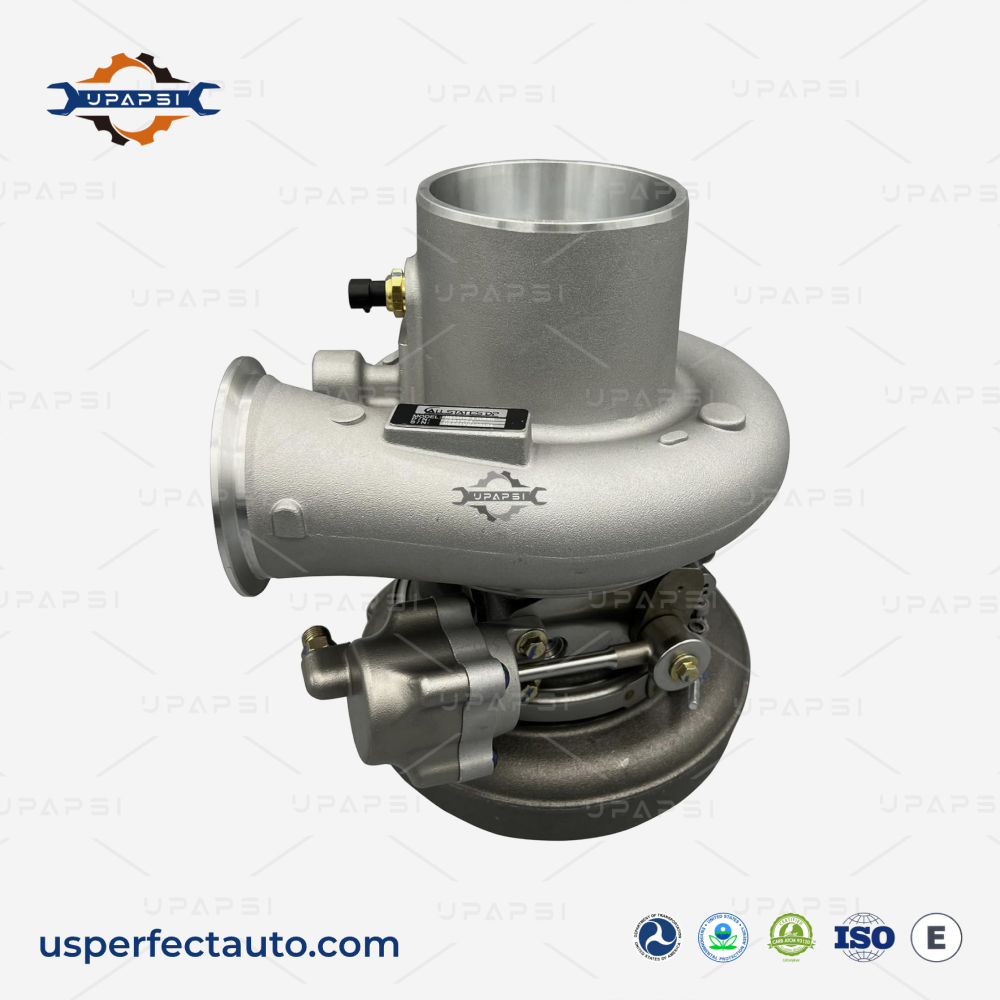

Cummins ISX CM870 turbo HE551V 2881994 front view

HE551V 2881994 Turbocharger for Cummins ISX QSX15 CM870

The HE551V (2881994) is a Holset VGT turbocharger for the Cummins ISX and QSX15 engines on the CM870 platform, covering 2003-2007 model years. This is a different configuration from the HE551V 2881993 — same turbo model but different interchange numbers and covering different ISX ratings and CPLs. The 2881994 variant has its own set of Cummins assembly and Holset interchange numbers. Both serve the CM870 platform, so matching by exact part number is critical. Built new with all new components, ships with VGT actuator and gaskets. We supply shops, fleets, and distributors.

Turbo Model

HE551V (CM870, VGT with pneumatic actuator)

OEM / Interchange Numbers

2881994

Application

Cummins ISX, QSX15 CM870 (2003-2007)

Service & Support

  • 1-Year Unlimited-Mileage Warranty
  • US Stock, Fast Dispatch
  • Bulk Orders Welcome
  • White-Label Support
  • Fully Certified
Get a Quick Quote

Your Source for Quality Diesel Engine Parts

  • US stock fast dispatch icon
  • 100% brand new parts icon
  • 1-year warranty icon
  • Wholesale pricing icon
  • White-label support icon
  • Fully certified quality icon

FAQ

Both are HE551V turbos for the CM870 ISX platform, but they cover different CPLs and engine ratings. The 2881994 uses Holset number 3768264 and Cummins numbers 4089152/4955306. The 2881993 uses 3768263 and 4089713/4955305. Match by the exact number stamped on your old turbo.

Cummins ISX and QSX15 on the CM870 platform, 2003-2007 model years.

Yes. Ships with pneumatic VGT actuator and gaskets.

Brand new, 100% new components, dynamically balanced. No core charge. One-year unlimited-mileage warranty.

Yes. US stock, volume pricing for shops, fleets, and distributors.

HE551V 2881994: Second CM870 Configuration for the ISX

Cummins produced multiple HE551V configurations for the CM870 ISX platform. The 2881994 covers different CPLs and power ratings than the 2881993. If you are replacing an HE551V on a CM870 ISX, check the exact Cummins assembly number or Holset number stamped on your old turbo before ordering.

2881993 vs 2881994 — which one do you need?

Detail28819932881994 (this page)
Turbo modelHE551VHE551V
PlatformCM870CM870
Key Holset #3768263, 40367193768264, 4036666
Key Cummins #4089713, 49553054089152, 4955306

The internal configuration differs between the two — compressor housing orientation and certain trim specifications. They cannot be interchanged freely. The part number on the turbo nameplate is the only reliable way to determine which one you need.

Where the HE551V fits in the ISX turbo lineup

The CM870 platform used the HE551V. Later CM871 engines moved to the HE561VE. Even later CM2250/CM2350 engines use the HE451VE, and the newest X15 (CM2350A/CM2450) uses the HE400VG. Check your CM platform number first, then match by turbo part number.

Installation

  • Ships with pneumatic VGT actuator and gaskets. This is a large, heavy turbo — use a hoist.
  • Connect the boost reference hose to the actuator canister.
  • Flush oil feed line. Replace oil drain gasket.
  • Prime with clean oil, idle 3-5 minutes before loading.
  • Verify VGT vane movement responds to boost changes.

See our quality process for details.
