S400SX4 S488 88mm Billet Turbocharger T4 Twin Scroll 1.25 A/R

Name: S400SX4 S488 88mm Billet Turbocharger T4 Twin Scroll 1.25 A/R
Brand: Detroit
SKU: 171702

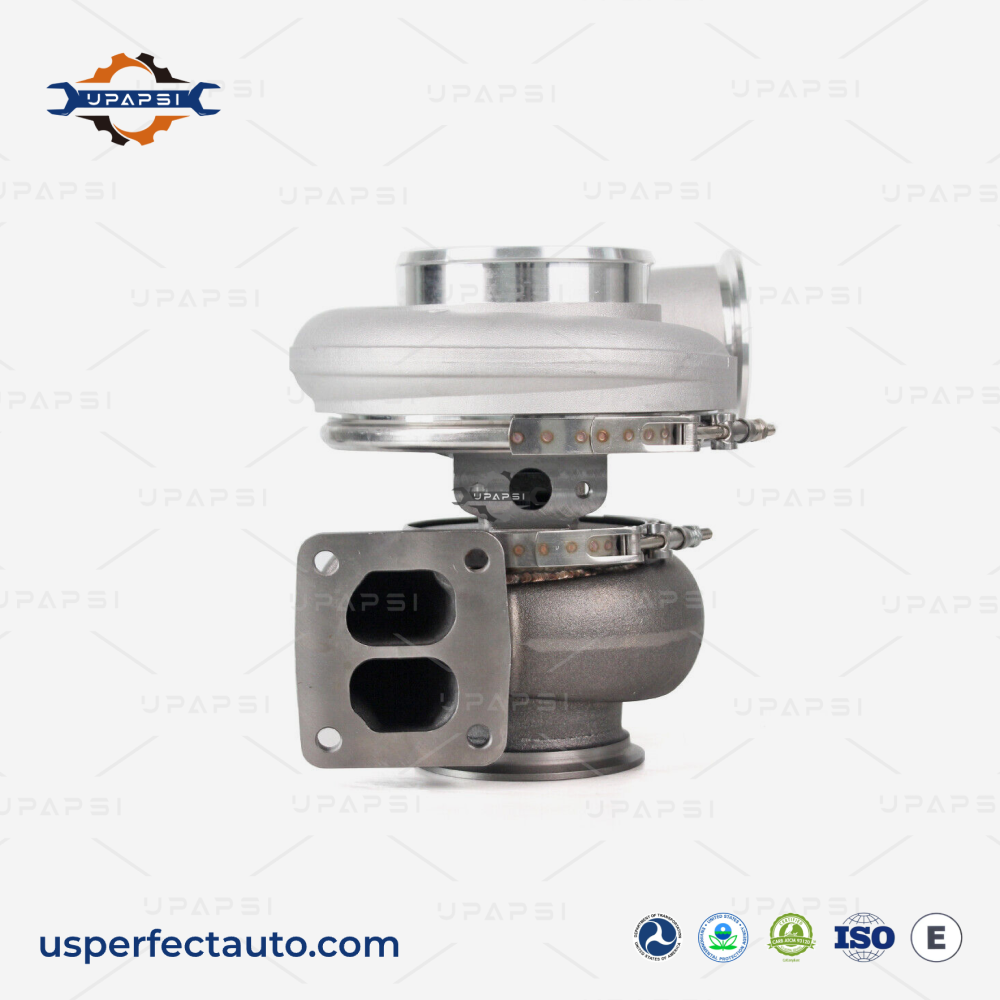

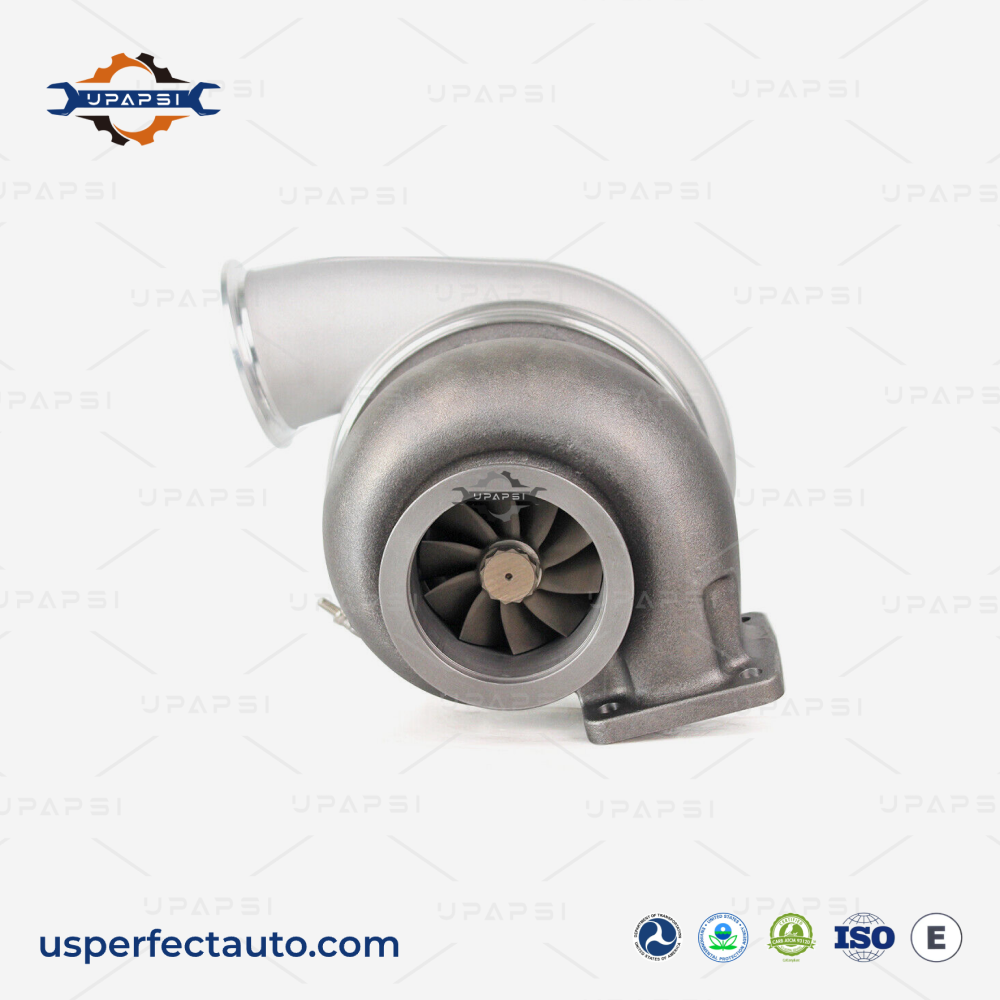

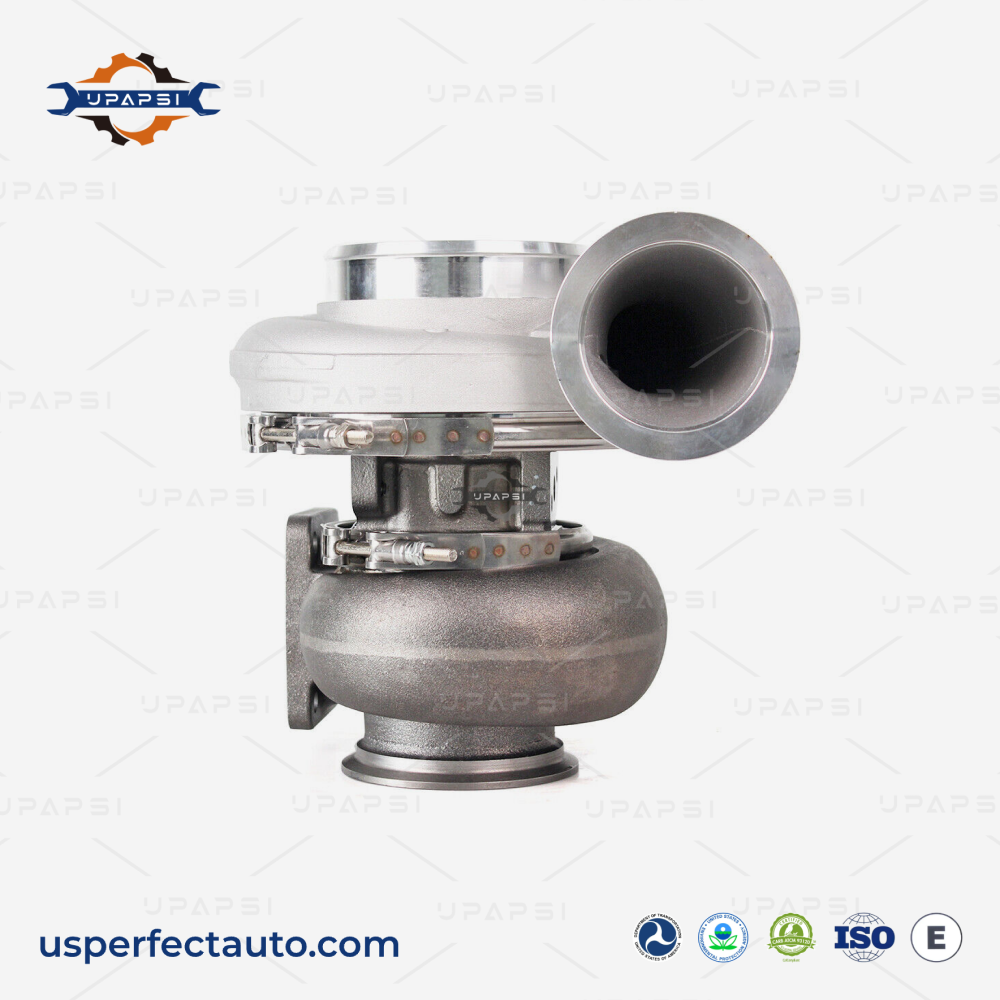

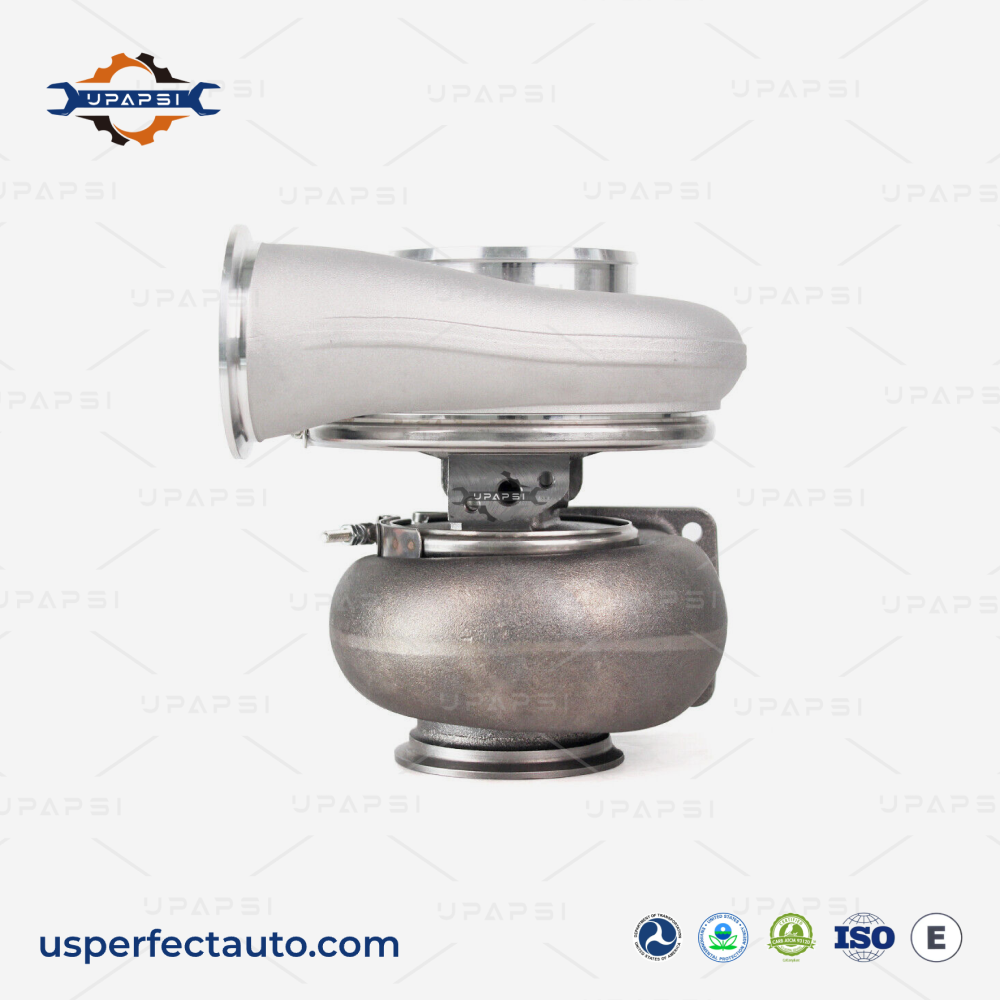

The S400SX4 S488 is a BorgWarner AirWerks performance turbocharger with an 88mm billet compressor wheel — the largest inducer in the S400 family. This configuration features a T4 twin-scroll turbine housing with 1.25 A/R. The S488 steps up from the S480 (80mm) with a larger compressor for applications targeting 900-1500+ HP. It is commonly used as the atmospheric charger in large compound turbo setups on Cummins 5.9L/6.7L drag and pull builds, or as a single turbo on very high-output diesel and gasoline engines. Built new, dynamically balanced. We supply performance shops, builders, and distributors.

Turbo Model

S400SX4 S488 (BorgWarner AirWerks, 88mm billet, T4 twin-scroll, 1.25 A/R)

Specifications

Compressor: 88mm billet Extended Tip | T4 twin-scroll inlet, 4.21” V-band outlet | 96/88mm turbine | 1.25 A/R | 900-1500+ HP

Application

Universal performance — compound turbo setups, drag racing, sled pulling

Service & Support

1-Year Warranty
US Stock, Fast Dispatch
Bulk Orders Welcome

Get a Quick Quote

Your Source for Quality Diesel Engine Parts

FAQ

The S488 has an 88mm compressor inducer vs 80mm on the S480. It flows more air for higher HP (900-1500+ HP vs 550-1250 HP) but spools slower due to the larger wheel. Choose the S488 when you have outgrown the S480 compressor map.

Universal performance turbo for competition diesel builds — commonly used on Cummins compound setups, large-displacement diesel engines, and other high-HP applications.

Brand new, 88mm billet compressor wheel, dynamically balanced. One-year warranty.

Yes. US stock, volume pricing for performance shops and distributors.

S488: The Largest S400 Compressor for Maximum Flow

The S488 is for builds that have outgrown the S480. The 88mm compressor wheel flows more air than the 80mm, supporting higher HP levels before running out of compressor map. If your compound setup is making 1200+ HP on the S480 and you need more headroom, the S488 is the next step.

S480 vs S488

Detail	S480	S488 (this page)
Compressor inducer	80mm	88mm
HP range	550-1250 HP	900-1500+ HP
Spool	Faster	Slower (bigger wheel)
Best for	Street/strip, balanced	Max power, competition

Common applications

Cummins 5.9L/6.7L compound turbo setups (atmospheric charger on 1200+ HP builds)
Large single turbo on high-displacement diesel engines
Drag racing and sled pulling competition builds
