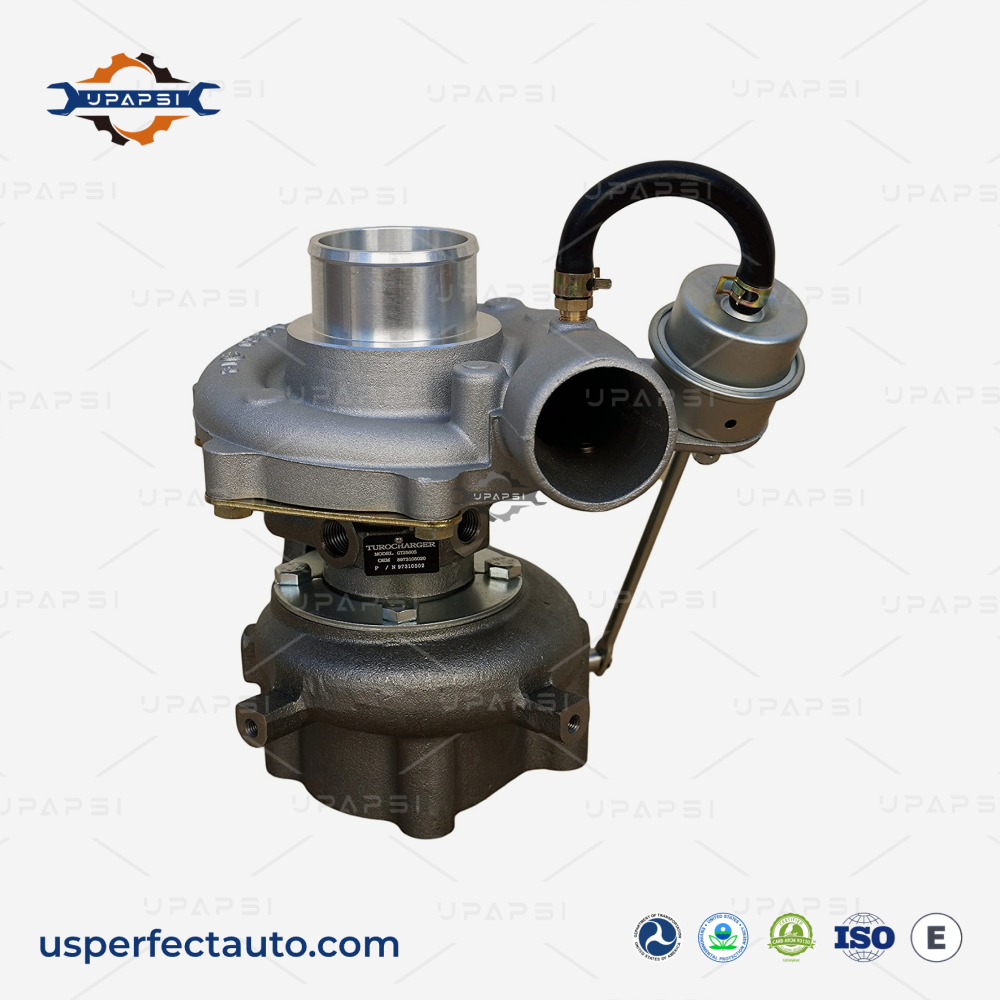

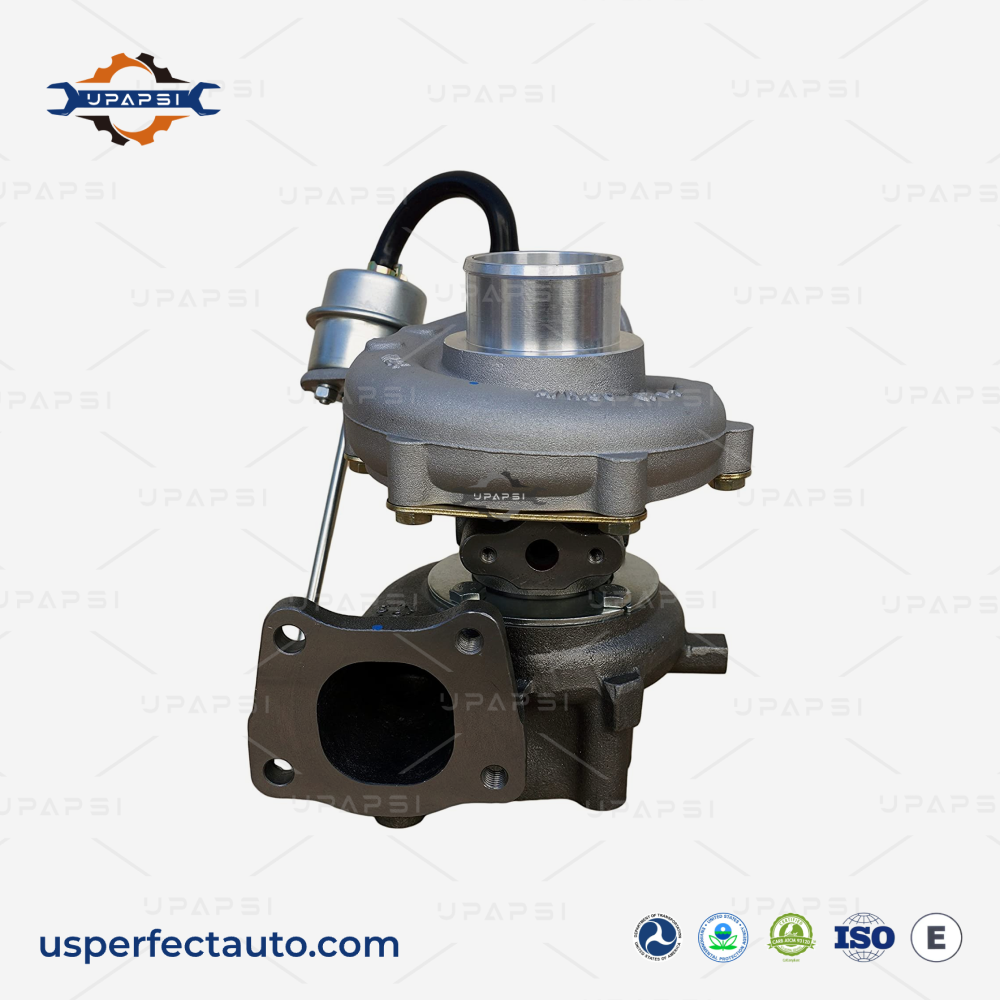

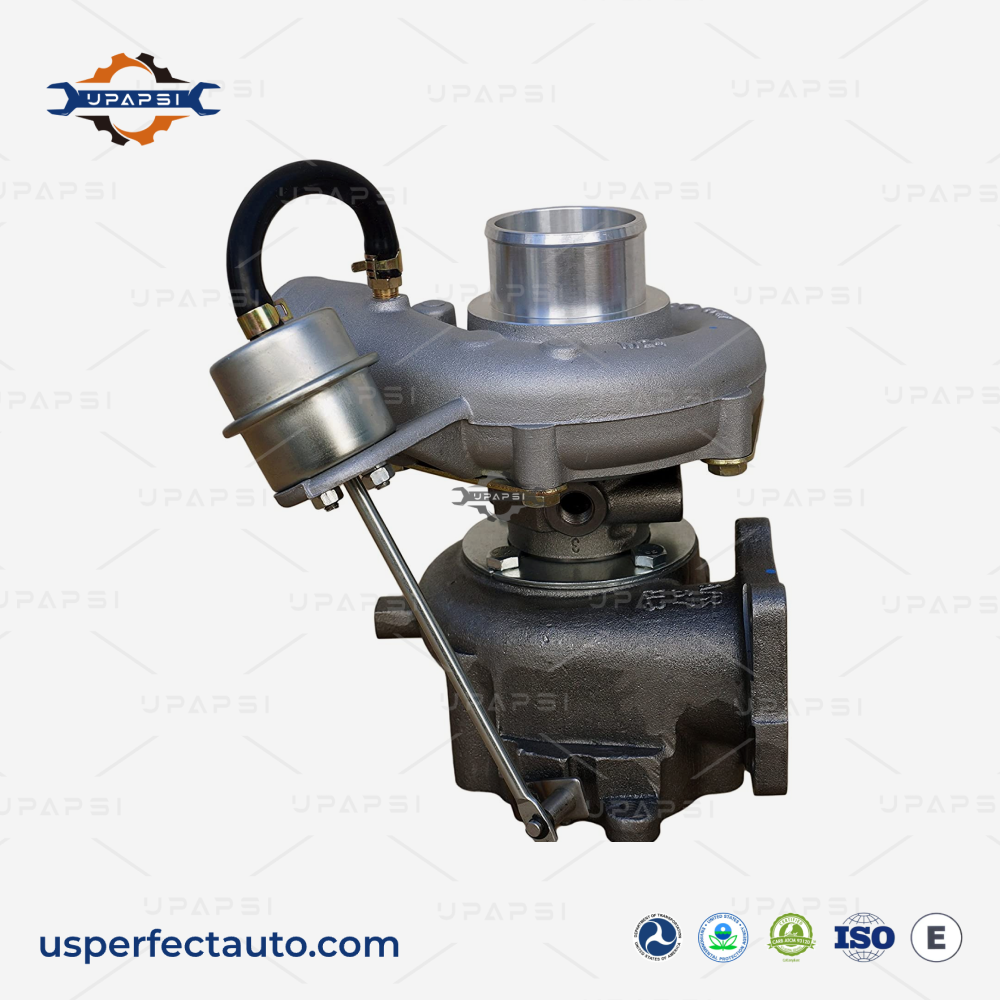

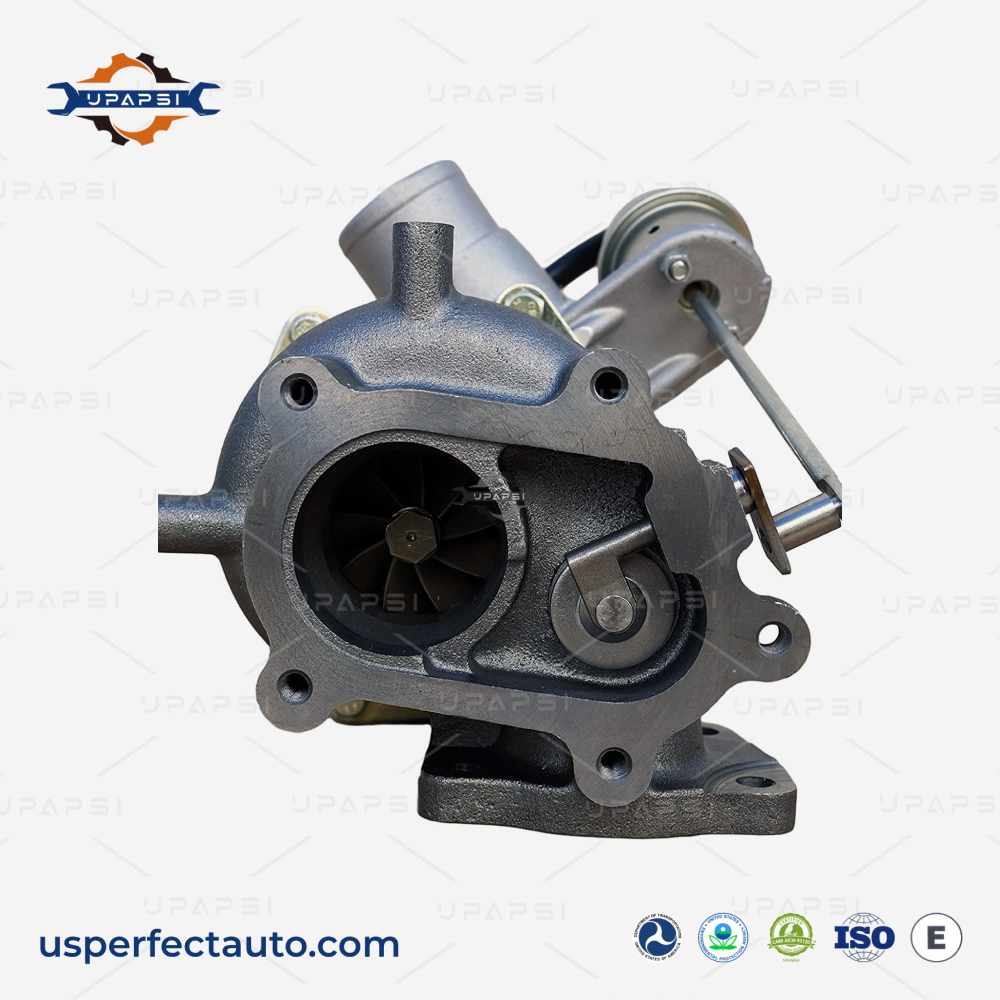

GT2560S Turbocharger for Isuzu Truck Elf N Series 4HK1 Engine
The GT2560S is a Garrett turbocharger for the Isuzu Truck Elf N Series with the 4HK1 (4H) engine, from 2005 onward. The Isuzu 4HK1 is a 5.2L inline-four diesel used in Isuzu NPR, NQR, NRR, and other N-series cabover trucks worldwide. The GT2560S is a compact fixed-geometry turbo matched to this medium-duty engine. Garrett part 700716-5018, Isuzu OEM 8973105020/8973105021/8973105022. Built new, dynamically balanced, ships with gaskets. We supply shops, equipment dealers, and distributors.
Turbo Model
GT2560S (Garrett)
OEM / Interchange Numbers
97310502, 700716-5018, 700716-0008, 700716-0012, 8973105020, 8973105021, 8973105022, 8973105023
Application
2005+ Isuzu Elf N Series (NPR, NQR, NRR) 4HK1 5.2L
Service & Support
- 1-Year Warranty
- US Stock, Fast Dispatch
- Bulk Orders Welcome
- White-Label Support
- Fully Certified
Your Source for Quality Diesel Engine Parts
FAQ
The GT2560S fits the Isuzu 4HK1 5.2L diesel engine used in the Elf N Series trucks from 2005 onward. Isuzu OEM 8973105020/8973105021/8973105022.
Isuzu NPR, NQR, NRR, and other N-series cabover trucks. Also used in some Isuzu construction equipment.
Brand new, dynamically balanced. No core charge. One-year warranty.
Yes. US stock, volume pricing for shops, fleet operators, and distributors.
GT2560S for Isuzu 4HK1: The N-Series Cabover Turbo
The Isuzu N-series (NPR, NQR, NRR) is one of the most widely used medium-duty cabover trucks in North America and worldwide. The 4HK1 5.2L diesel is the workhorse engine for this platform, and the GT2560S is its turbo.
Common Isuzu N-series applications
- Isuzu NPR (Class 4-5 cabover)
- Isuzu NQR (Class 5 cabover)
- Isuzu NRR (Class 5-6 cabover)
- Various box trucks, flatbeds, and vocational bodies
Installation
- Direct bolt-on replacement. Ships with gaskets.
- Flush oil feed line. Replace oil drain gasket.
- Prime with clean oil, idle 3-5 minutes before loading.
See our quality process for details.
