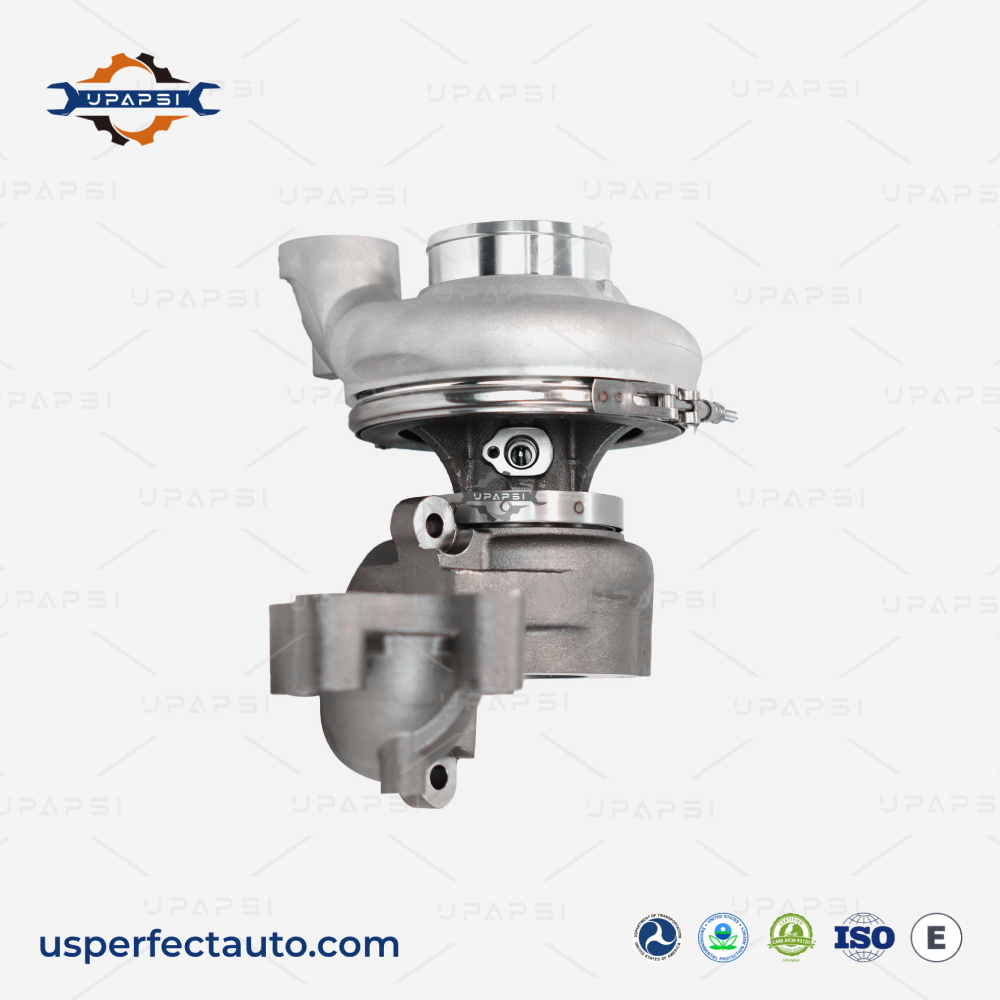

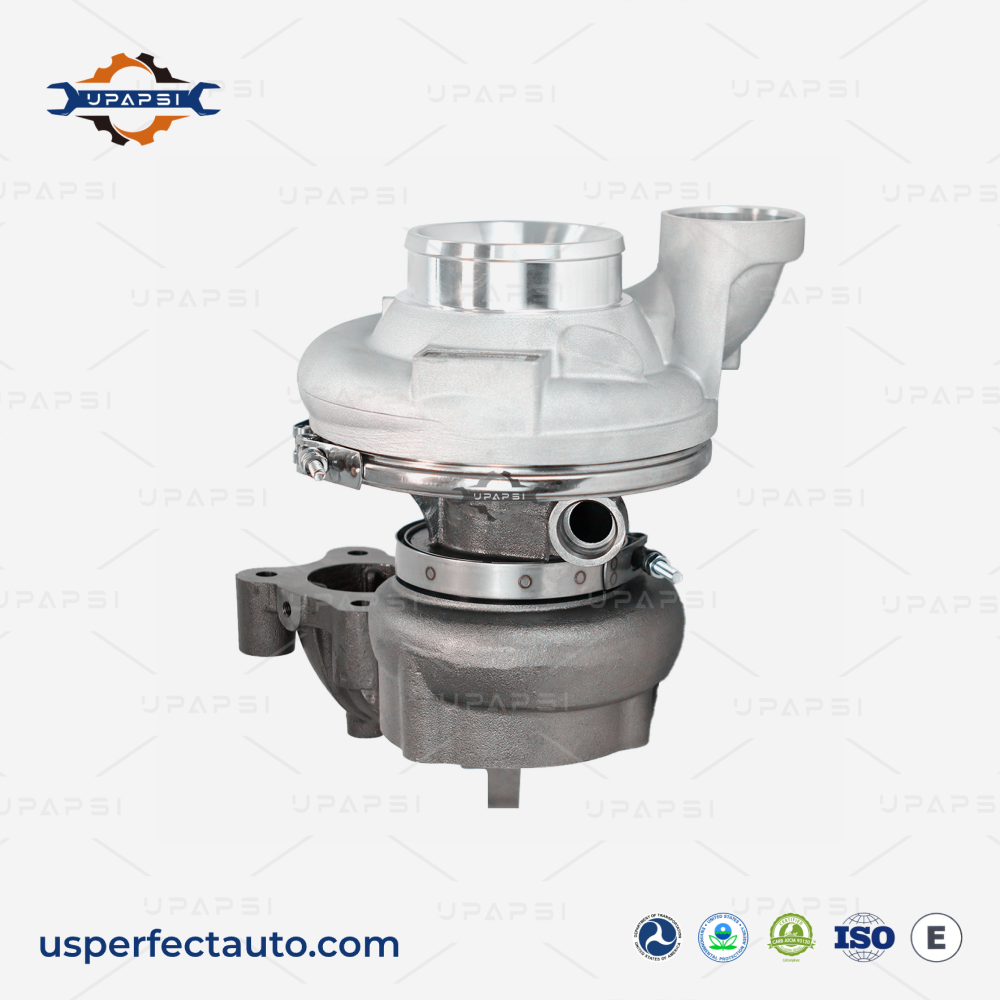

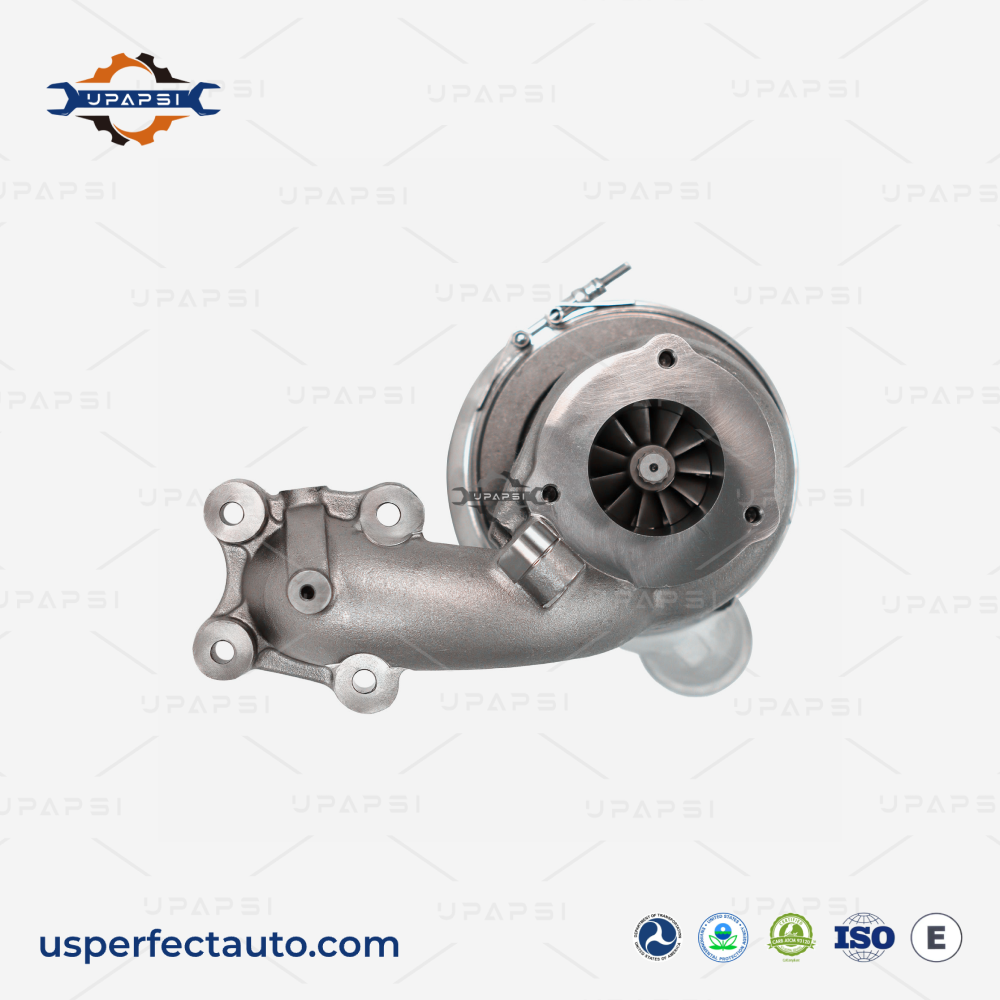

R2S 12749880075 Low Pressure Turbocharger for MaxxForce DT466 7.6L

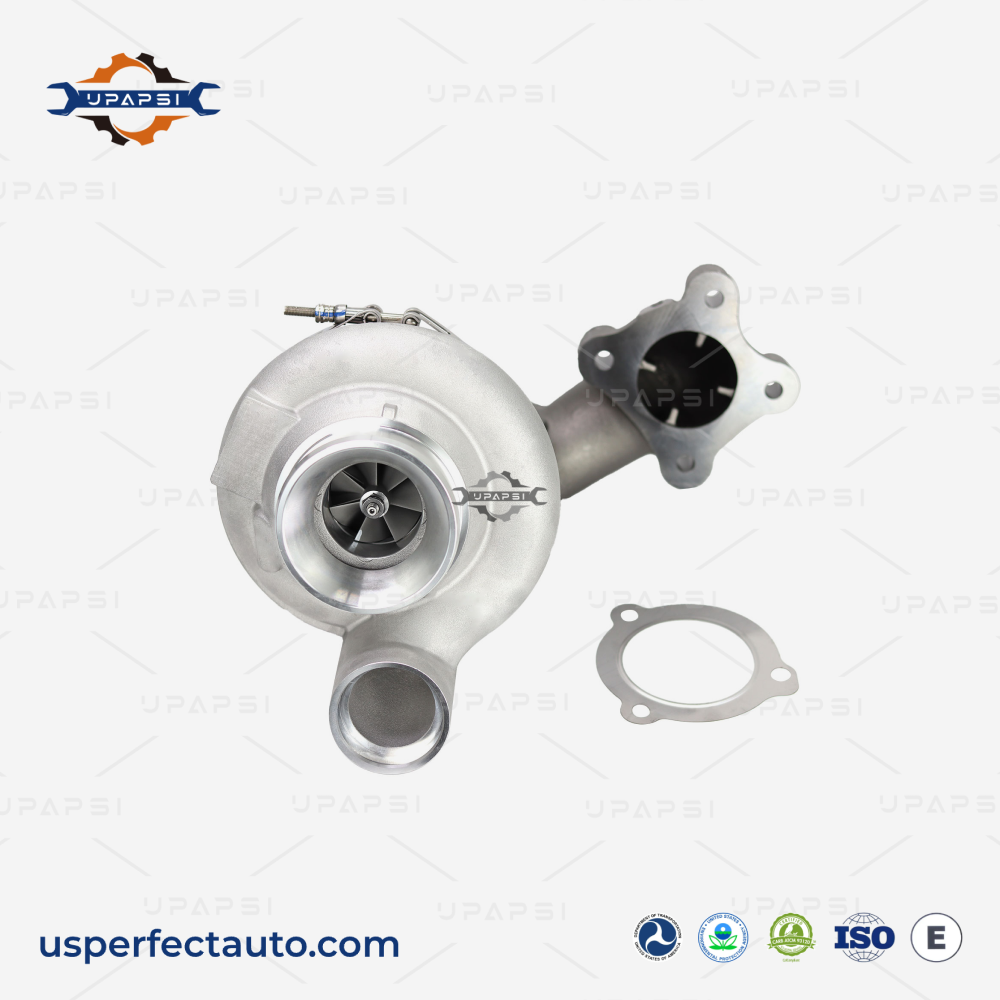

The R2S (12749880075) is a BorgWarner low-pressure turbocharger for the 2010-2012 International Navistar MaxxForce DT466 (I334) 7.6L two-stage system. It is an alternate LP configuration to the B2FS 12749880076 — adjacent BorgWarner numbers covering different DT466 sub-variants. Match by the number on your old turbo nameplate. International OEM 1889487C93, 1891392C91/C92, 1899113C93, 5010936R91. Built new, dynamically balanced, ships with gaskets. We supply shops, fleets, and distributors.
Turbo Model
R2S (BorgWarner, low-pressure side of two-stage system)
OEM / Interchange Numbers
12749880075, 1889487C93, 1891392C91, 1891392C92, 1899113C93, 5010936R91
Application
2010-2012 International Navistar MaxxForce DT466, DT, I334 7.6L (low pressure)
Service & Support
- 1-Year Unlimited-Mileage Warranty
- US Stock, Fast Dispatch
- Bulk Orders Welcome
- White-Label Support
- Fully Certified
Your Source for Quality Diesel Engine Parts
FAQ
The R2S (12749880075 / 1889487C93) fits the 2010-2012 MaxxForce DT466 / I334 7.6L as the low-pressure turbo of the two-stage system.
Adjacent configurations for different DT466 sub-variants. The 12749880076 carries International numbers 1889489C94/1891335C93; this 12749880075 carries 1889487C93/1899113C93. Match by nameplate.
Brand new, dynamically balanced. No core charge. One-year unlimited-mileage warranty.
Yes. US stock, volume pricing for shops, fleets, and distributors.
R2S 12749880075: Alternate LP Configuration
The DT466 EPA10 platform used two adjacent LP turbo part numbers. Match by your old turbo nameplate:
| LP config | Key International # |
|---|---|
| 12749880075 (this page) | 1889487C93, 1899113C93 |
| 12749880076 | 1889489C94, 1891335C93 |
Both pair with the B1 high-pressure turbo (11559880047).
Installation
- LP turbo is the outer unit. Ships with gaskets.
- Recommend replacing HP and LP together.
- Flush oil lines, prime, idle 3-5 minutes. Verify via ECM.
See our quality process for details.
