US Perfect Auto Parts & Supplies Inc.
Ford

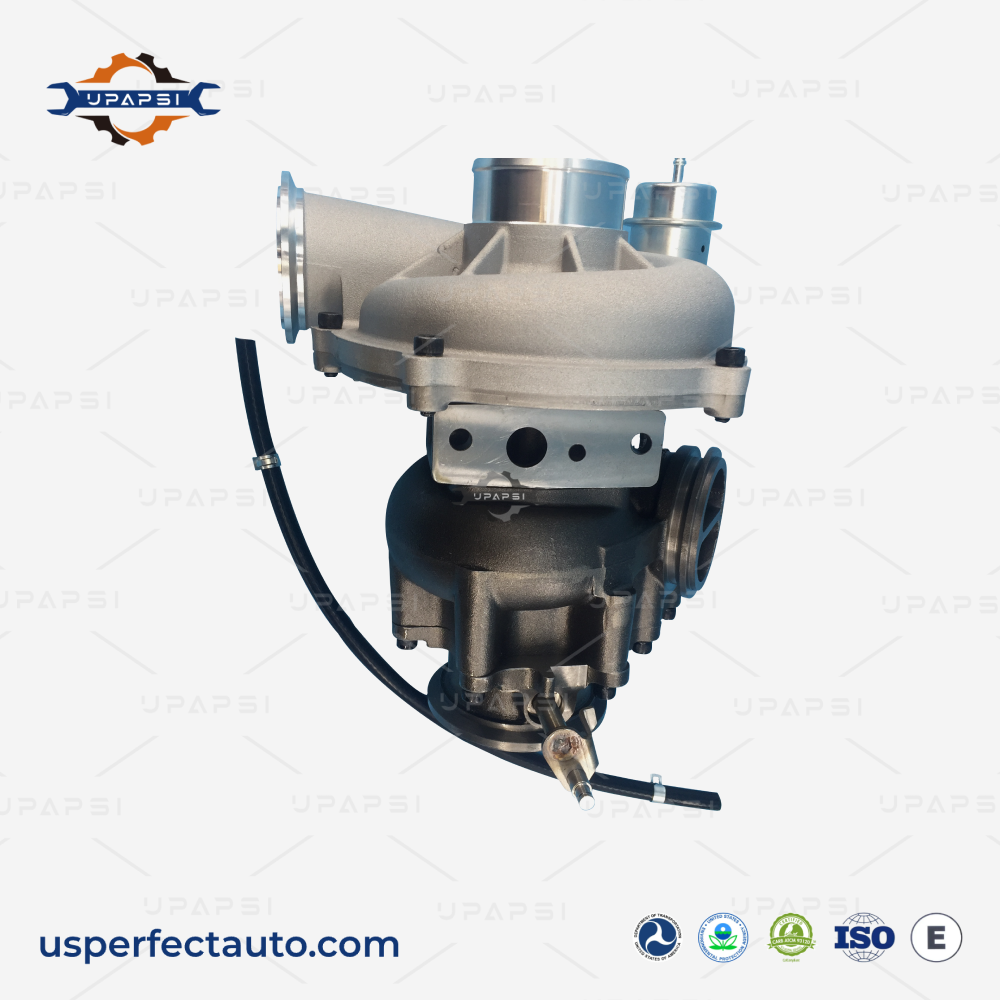

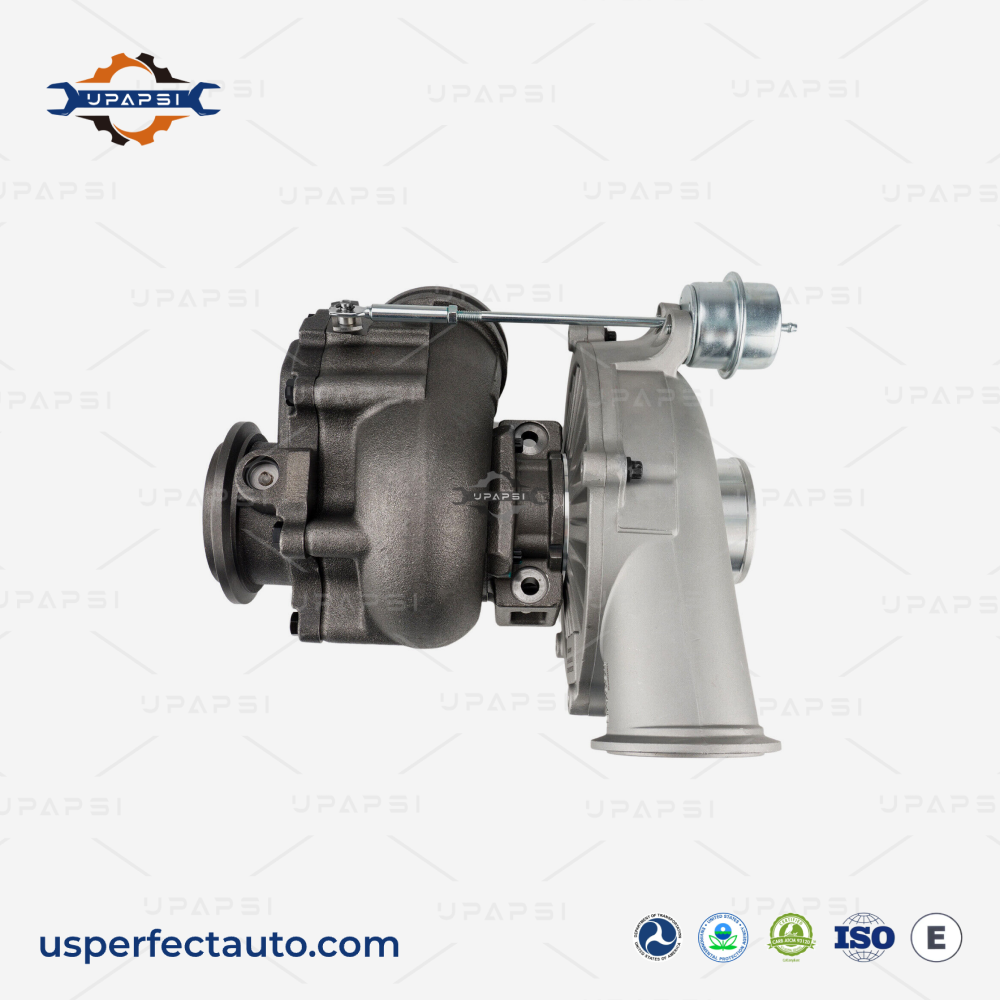

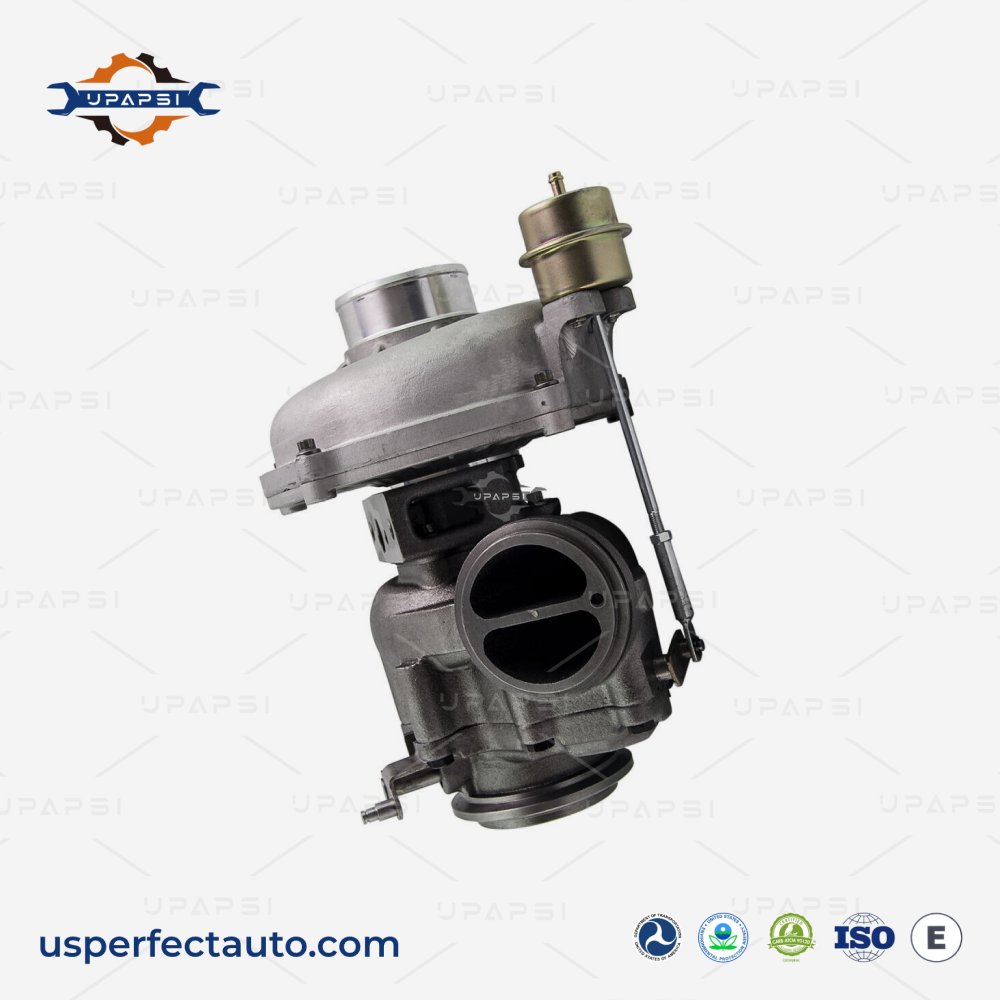

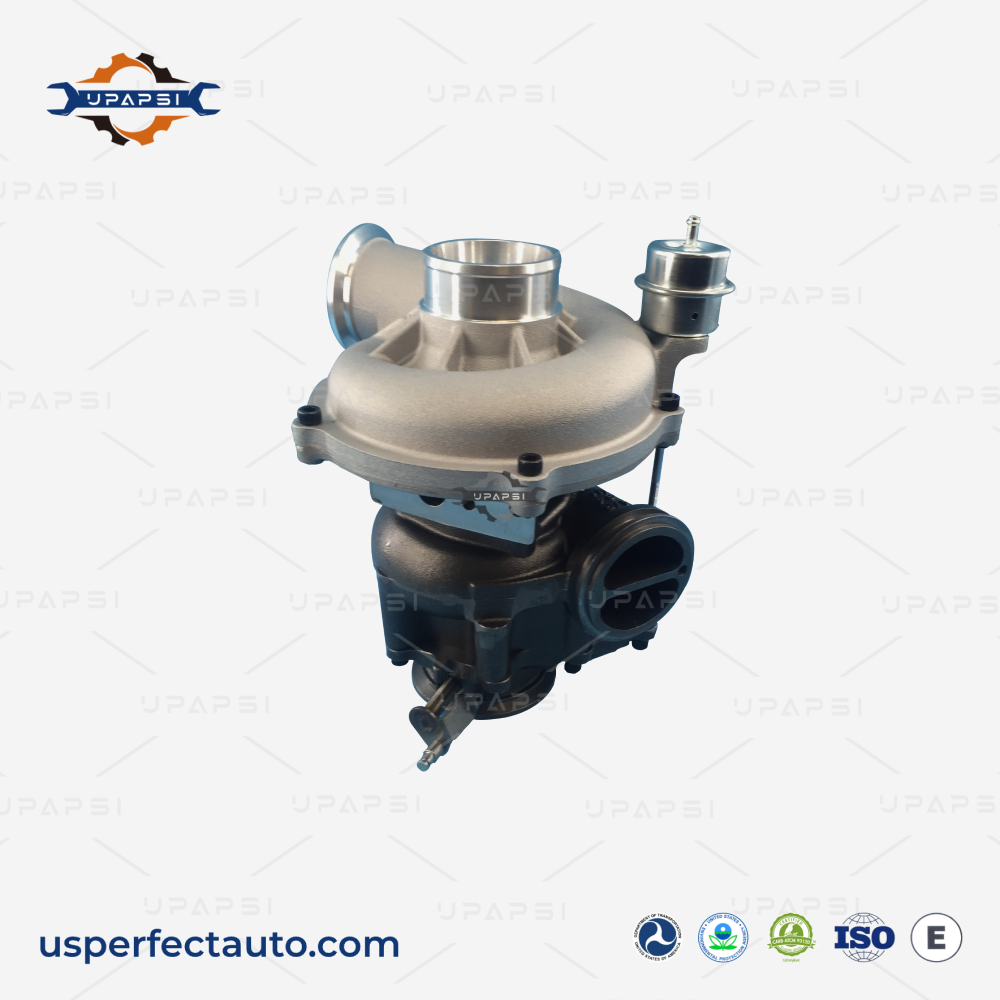

GTP38 Turbocharger for 1999.5-2003 Ford F-250 F-350 Super Duty 7.3L Power Stroke

The GTP38 is the Garrett turbocharger for the 1999.5-2003 Ford F-250, F-350, F-450, F-550 Super Duty, and Excursion with the 7.3L Power Stroke diesel. The 7.3L Power Stroke is one of the most iconic diesel truck engines ever made, and the GTP38 is its turbo. This is a fixed-geometry turbo with an internal pneumatic wastegate, 60mm compressor inducer, 68mm turbine wheel, 0.84 A/R, and a 5-bolt pedestal mount. Garrett part 702012-0010, Ford OEM F81Z6K682BARM, International 1831383C92. Our GTP38 ships new with wastegate actuator, dynamically balanced, with gaskets. We supply diesel shops and distributors.

Turbo Model

GTP38 (Garrett, fixed geometry, internal wastegate, 5-bolt pedestal)

OEM / Interchange Numbers

702012-0010, 702650-0001, 1831383C92, 1831383C93, 1831383C94, 1831450C91, 1831450C94

Application

1999.5-2003 Ford F-250/F-350/F-450/F-550 Super Duty, Excursion, 7.3L Power Stroke

Service & Support

  • 1-Year Unlimited-Mileage Warranty
  • US Stock, Fast Dispatch
  • Bulk Orders Welcome
  • White-Label Support
  • Fully Certified
Get a Quick Quote

Your Source for Quality Diesel Engine Parts

  • US stock fast dispatch icon
  • 100% brand new parts icon
  • 1-year warranty icon
  • Wholesale pricing icon
  • White-label support icon
  • Fully certified quality icon

FAQ

The GTP38 fits the 1999.5-2003 Ford F-250, F-350, F-450, F-550 Super Duty, and Excursion with the 7.3L Power Stroke diesel.

Only late 1999 trucks built after December 13, 1998. Early 1999 trucks use the older TP38 turbo. Check your build date on the driver door VIN label.

No. The GTP38 is a fixed-geometry turbo with an internal pneumatic wastegate. No VGT, no electronics. Bolt on and go.

Ford OEM F81Z6K682BARM. Garrett 702012-0010. International 1831383C92.

Brand new with wastegate actuator, dynamically balanced. No core charge. One-year unlimited-mileage warranty.

Yes. US stock, volume pricing for diesel shops and distributors.

GTP38 for the 7.3L Power Stroke: The Legendary Ford Diesel Turbo

The 7.3L Power Stroke is arguably the most popular diesel truck engine ever made. Trucks with this engine command premium prices because of the engine’s legendary reliability and simplicity. The GTP38 is the stock turbo for the late-model 7.3L (1999.5-2003), and it is a simple, reliable design with no VGT, no electronic actuator, and no variable vanes.

Ford Power Stroke turbo timeline

YearsEngineTurbo
1999.5-2003 (this page)7.3L Power StrokeGTP38 (Garrett)
2003-20076.0L Power StrokeGT3782V (Garrett VGT)
2008-20106.4L Power StrokeV2S compound twin turbo

GTP38 specifications

  • Compressor: 60mm inducer / 80mm exducer
  • Turbine: 68mm
  • A/R: 0.84
  • Wastegate: Internal, pneumatic actuator
  • Cooling: Oil cooled
  • Mounting: 5-bolt pedestal

1999 model year note

The 7.3L Power Stroke changed turbos mid-1999. Early 1999 trucks (built before December 1998) use the older TP38 turbo. Late 1999 trucks (built after December 13, 1998) use the GTP38. Check your truck’s build date on the VIN label on the driver door jamb.

Common failure modes

  • Bearing wear — shaft play at 150k-250k miles. Oil in the intake, blue smoke.
  • Wastegate stuck — carbon buildup on the internal wastegate flapper. Loss of power or overboosting.
  • Pedestal O-ring leak — the up-pipe-to-pedestal O-ring degrades, creating an exhaust leak that sounds like a turbo problem but is actually a seal issue.

Installation

  • Ships with wastegate actuator and gaskets.
  • 5-bolt pedestal mount — straightforward bolt-on.
  • Replace the pedestal O-ring (not included — order separately).
  • Flush oil feed line. Prime turbo with clean oil.
  • Idle 3-5 minutes before loading.

See our quality process for details.
